2JZ 3.3L I-beam Stroker Kit
Part Number | Bore | Stroke | Crankshaft Material | Rod Length | Rod Type | Capacity |
NIT-STK-2JZI865 | 86.5MM/+0.020" | 92MM | 4340 | 145MM | I-beam | 3.3L |
The 2JZ is an absolute legend of the JDM tuning industry. The factory 3.0L combination has served people well for many years since it came into production, however, in more recent times, the desire for a stronger, longer stroke combination has become more prominent. Here, we offer a Nitto 2JZ 3.3L stroker kit.

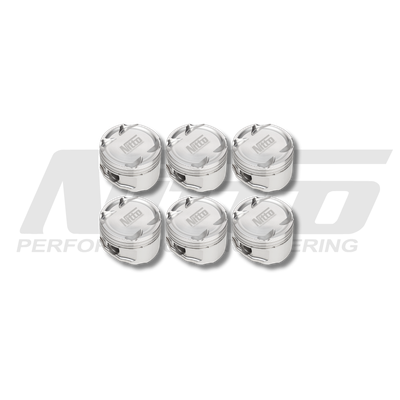

The kit consists of our Nitto/CP pistons in a whole array of bore sizes. These pistons are cut from low silicon content 2618 material in CP’s Turbo HD forging. In addition to these, the pistons are complete with Nitto custom specifications, PVD rings, 9310 gudgeon pins, accumulator grooves and friction reduction grooves.
The connecting rods are our robust I-beam design. Made from double melted forged billet 4340, this connecting rod features a stout I-beam design that has proven time and again to be capable of holding considerably high power without the added cost of the V2s. These connecting rods come with 7/16 ARP 2000 rod bolts as standard, with the option to upgrade to Custom Age 625+.

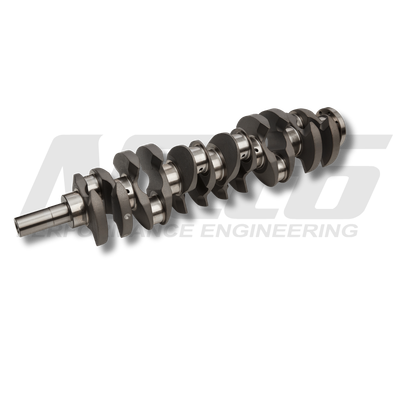

Completing the kit is the 4340 billet crankshaft in 92mm stroke. This crankshaft has been purposely designed with strength and high power applications in mind. The crankshafts are an immaculate piece with precision manufactured knife edging to reduce weight and cut through crank case oil mist with ease. This enables the crankshaft to rev freely and easily.
