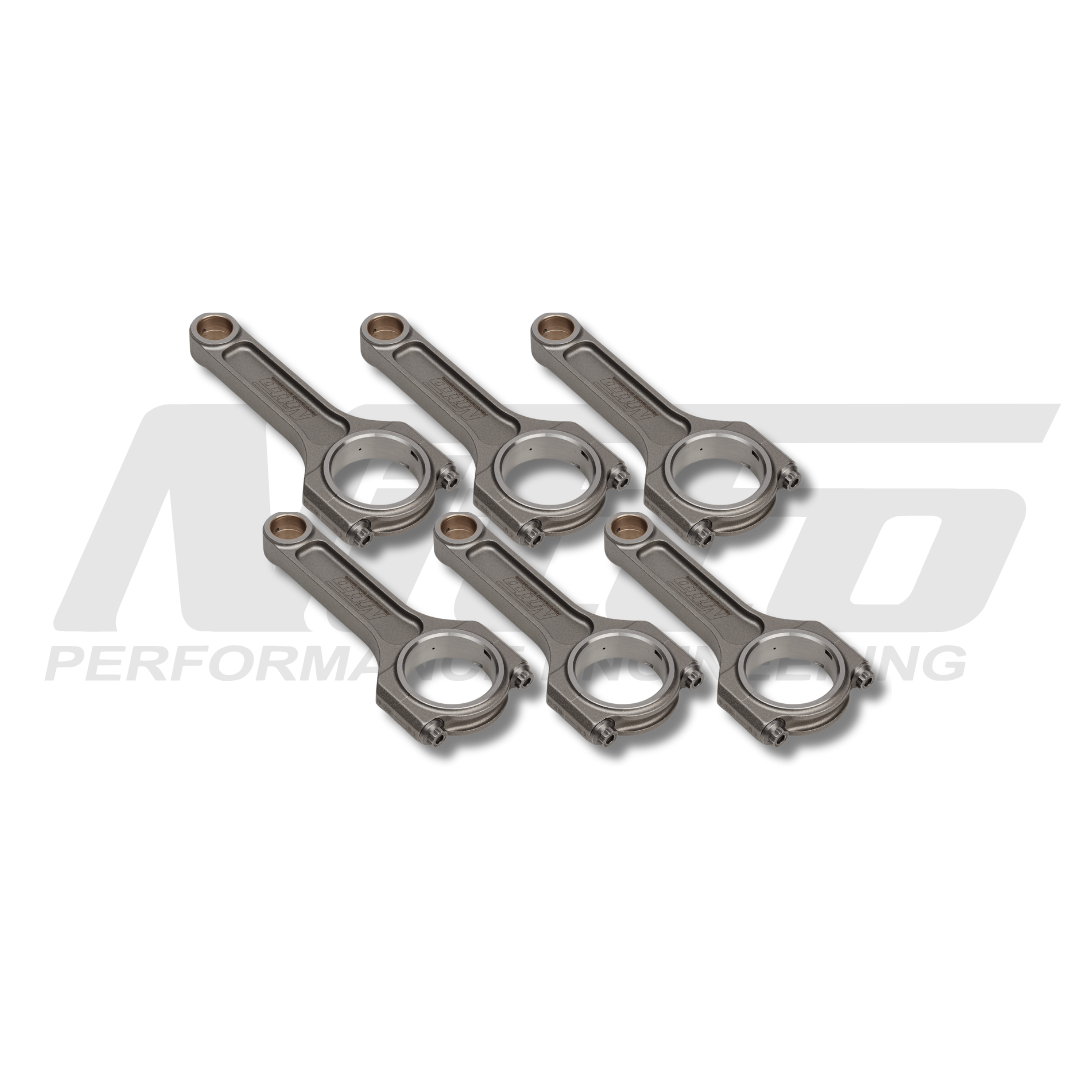

RB30 Steel I-Beam Connecting Rods

AU$0.00
In stock
Product Details
Part Number Length Pin Rod Bolts Material Big End Journal
NIT-ROD-RB30I21 152.4MM 21MM 7/16 4340 Standard
NIT-ROD-RB30I22 152.4MM 22MM 7/16 4340 Standard
NIT-ROD-RB30I221.5WD 152.4MM 22MM 7/16 4340 Wide Journal

Connecting rod installation instructions

The whole Nitto 4340 connecting rod range is produced from the highest quality double melted forged billet material. Double melted 4340 is a significant feature when compared to other aftermarket offerings which are typically only single melted. The extra melting process removes material impurities, ensuring the 4340 material our rods are made from are of the highest standard. The forging of the billet also ensures a tight and uniform relationship between material grains, enhancing the strength of the one piece forging, unlike the commonly used two piece designs in the lower end of the market.

Nitto I-beams have a longstanding reputation for being able to handle incredible amounts of punishment. Our I-beams have been thoughtfully designed to be suitable for a majority of applications and power levels and are the ideal connecting rod for someone who’s build goes beyond an intermediate level of performance.

Nitto I-beam connecting rods feature quality ARP rod bolts and silicone bronze wrist pin bushes to ensure reliability. Nitto I-beam connecting rods are for use in applications that require a high strength, resilient link between the crankshaft and piston but do not require the top level performance of the V2 connecting rods.

Features of our connecting rods:

  • Grade Tested (X-Ray & Sonic) 4340 Billet Steel ONE Piece Forging
  • Quenched and Heat Treated
  • Shot Peen Hardness Treated (38HRC)
  • Doweled Cap for Superior Alignment
  • Quality ARP 2000 Series Bolts
  • Optional ARP Custom Age 625 Plus Series Bolts
  • Silicone Bronze Pin End Bushes
  • Balanced to Within a +/- 1 Gram Tolerance Per Set
  • Bore Diameters to Within +/- 0.0001" Tolerance
  • Sunnen Honing Machines Along with Sunnen Diamond Honing Tooling are used for both Big & Pin End Machining and Sizing
  • 100% CNC Profiled
  • 100% CNC Drilled & Tapped
